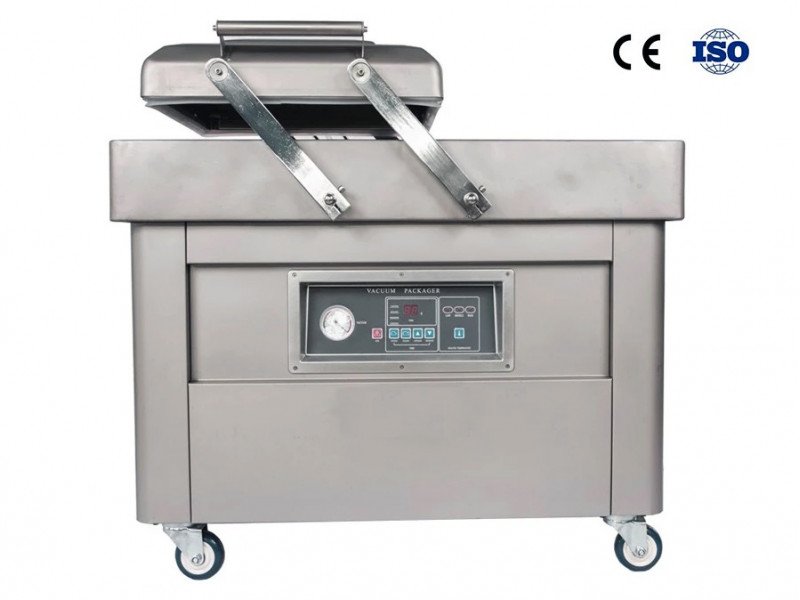

EVDC-400A Empacadora Envasadora al Vacío de Doble Cámaras, 4 Barras de Sellado de 400mm y Sistema de Atmósfera Modificada
DProduct Application
- EVDC-400A double chamber vacuum packaging machine is featured by automatic processing of vacuuming, sealing, printing, cooling in one operation.
- It has double vacuum chambers. Operator can prepare bags for next vacuum packing in another chamber when one chamber is packing.
- Therefore it has higher efficiency than single chamber machine.
- It is widely used in vacuum packing for the food, pharmaceutical, aquatic, chemical and electronic industries.
- Vacuum packing can prevent the products from oxidization and mildew, as well as corrosion and moisture. So it prolongs the life and freshness of the products over a prolonged storage time.
- EVDC-400A series machine fills the bag with some kind of gas, such as nitrogen, after vacuuming the bag. Nitrogen gas helps to have longer freshness time than vacuum state.
Modelo | EVDC-400A |
---|---|
Función | Envasado al Vacío Selladora de Bolsas Codificadora Atmósfera Modificada |
Atmósfera Modificada | Control de Inyección de Gases Inertes (Nitrógeno,.. Mezclas) |
№ Cámara al Vacío | Dos Cámaras/Campanas |
Tamaño de Cada Cámara | 500×450×110mm |
Barras de Sellado | 4 x Barras |
Ancho del Sello | 10mm |
Largo del Sello | 400mm |
Patrón del Sello | Puntas Finas |
Capacidad/Velocidad | 2-6 Envasados/Min |
Voltaje | 220VAC -60Hz |
Bomba al Vacío | XD-020 20m3/h |
Rango de Presión | 0,1 ~ 0,5MPa |
Nivel de Ruido | < 65db |
Potencia de la Bomba al Vacío | 900Watts |
Potencia Total | 2000Watts |
Dimensiones | 1350×750×950mm |
Peso del la Selladora | 200Kg |
EVDC-400A ENVASADORA EMPACADORA AL VACÍO CON DOBLE CÁMARA/CAMPANA - 4 BARRAS DE SELLADOR DE 400MM Y SISTEMA DE ATMÓSFERA MODIFICADA
- Código del producto: EVDC-400A
- Disponibilidad: En Stock
Etiquetas: Empacadoras al Vacío de Doble Camáras, Atmósfera Modificada
